Carilex Envelop
Carilex Envelop
An intelligent Bariatric Air mattress - when quality is required.
Category:
Bedroom Pressure Care
Overview

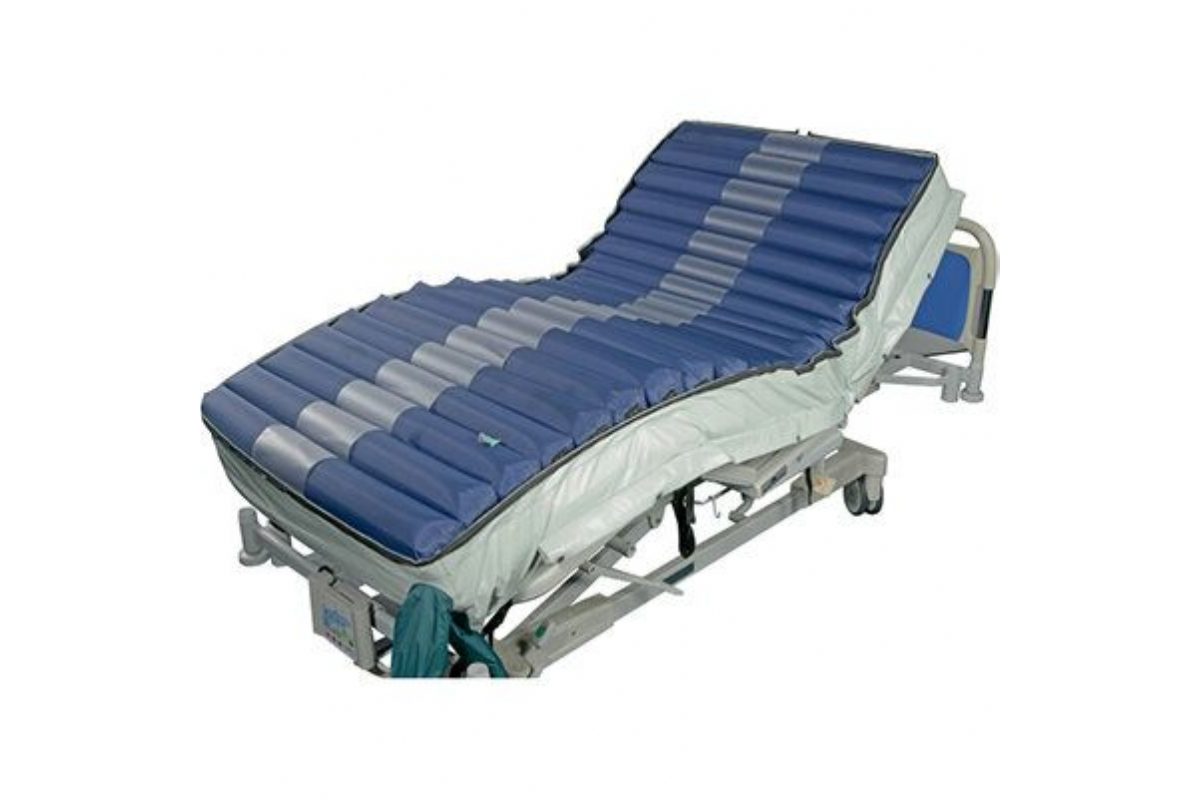

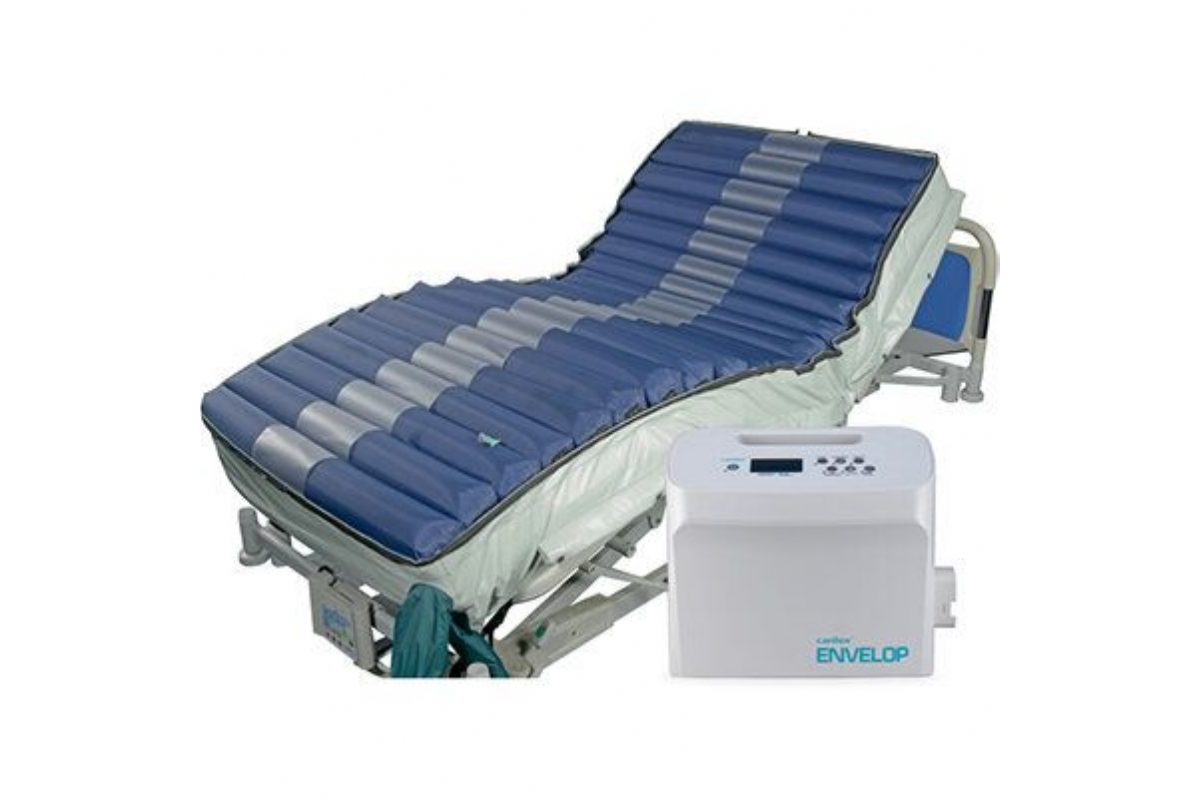

Envelop Mattress and Pump
Envelop uses patented S.M.A.R.T. Technology to maintain the optimal internal pressure and automatically determine patient load on the mattress surface. Using the mattress as a direct sensor pad, S.M.A.R.T. allows Envelop to relieve pressure and provide step-less internal pressure adjustments, thus eliminating the need for extra underlying sensor pads.
Features and Benefits Air mattress
| GENERAL FEATURES | |
|---|---|
| S31 tested | 79% immersion creating the best envelopment effect in the industry |
| Instant CPR Pull Tab | Rapid deflating the entire mattress within seconds in case of an emergency |
| Bariatric extension | Side extensions fitting width of 90cm, 105cm and 120cm – one mattress fits all |
| Square air cells | No gap between air cells delivers maximum support and pressure redistribution while patient is lying down. This also gives additional safety for egress and ingress |
| Directional Snap | Specifically designed buttons provide better structural stability from air cells |
| Multiple coverlet material | Standard breathable quilted nylon coverlet or the optional Dartex coverlet providing high quality waterproof and vapour permeable medical fabric |
| Transportation plug | Allows the mattress to stay inflated after being detached from the power unit |
| TECHNICAL DETAILS | |
| Risk/Category | Very High |
| Waterlow Score | 20+ |
| Pressure Sore Grading | 4 |
| Safe Working Load | Up to 450kg |
| Air Cell Configuration | 21 x 8" square cells |
| Cycle Times | 10 minutes, 2:1 |
| Available Size / Dimensions | King Single 105cm x 200cm x 25cm Extra Wide 120cm x 200cm x 25cm |
| Securing Mattress to Bed | Buckle straps |
| Travel / Weight | Mattress rolls up into a bag, weighing 11.5kg |
| Clinical Settings | Suitable for Hospital, Home Care and Nursing Home environments |
| Compatible Pumps | Envelop |
| Warranty | 2 years |

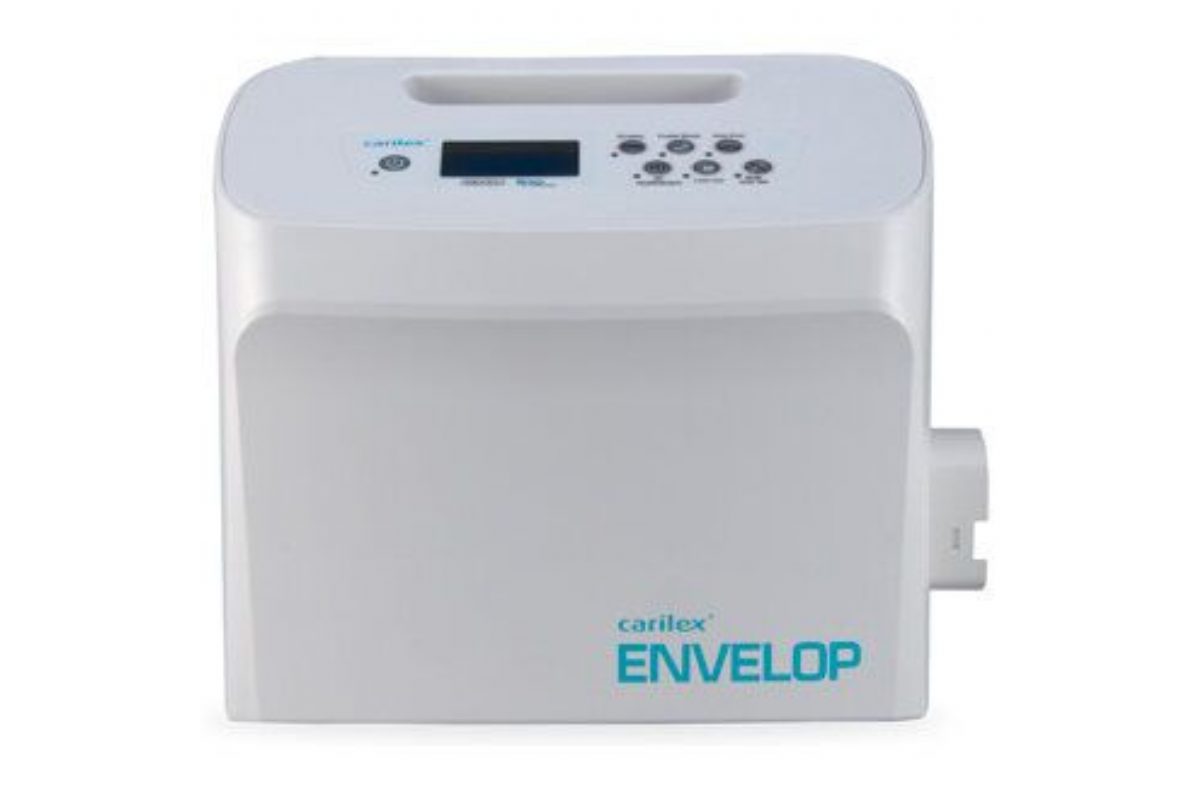

Features and Benefits of Pump
| GENERAL FEATURES | |
|---|---|
| 1 Patented S.M.A.R.T. Technology | Automatically determines the patient load on the mattress surface |
| 2 Intelligent Pressure Sensing (IPS) | Responds to patient movements on mattress by automatically adjusting internal mattress pressure |
| 3 Bariatric Mode | High weight capacity supporting both standard and bariatric patients up to 450kg |
| 4 Battery Backup | Automatic power detection sensor activates battery backup in the event of power failure and allows treatment to continue uninterrupted during patient transportation and examination |
| 5 LCD Panel | Liquid crystal display for intuitive operation |
| Fowler Boost | Allows patients to be in a reclined sitting position |
| 6 Max Inflate | Rapidly hyper-inflates the mattress providing a firm and convenient surface for nursing tasks |
| Memory Recall | Restores to the previous systems automatically after abnormalpower outage |
| 8 Low Pressure Alert | Orange LED indicates insufficient pressure |
| Panel Lock | System is locked when light is orange |
| Transport Mode | Connect the two quick couplings together to retain air in the mattress, can stay inflated for up to 15 hours |
| 7 Power Failure Alarm | Audible and visual power failure alarms to alert caregivers in case of abnormal power outage |
