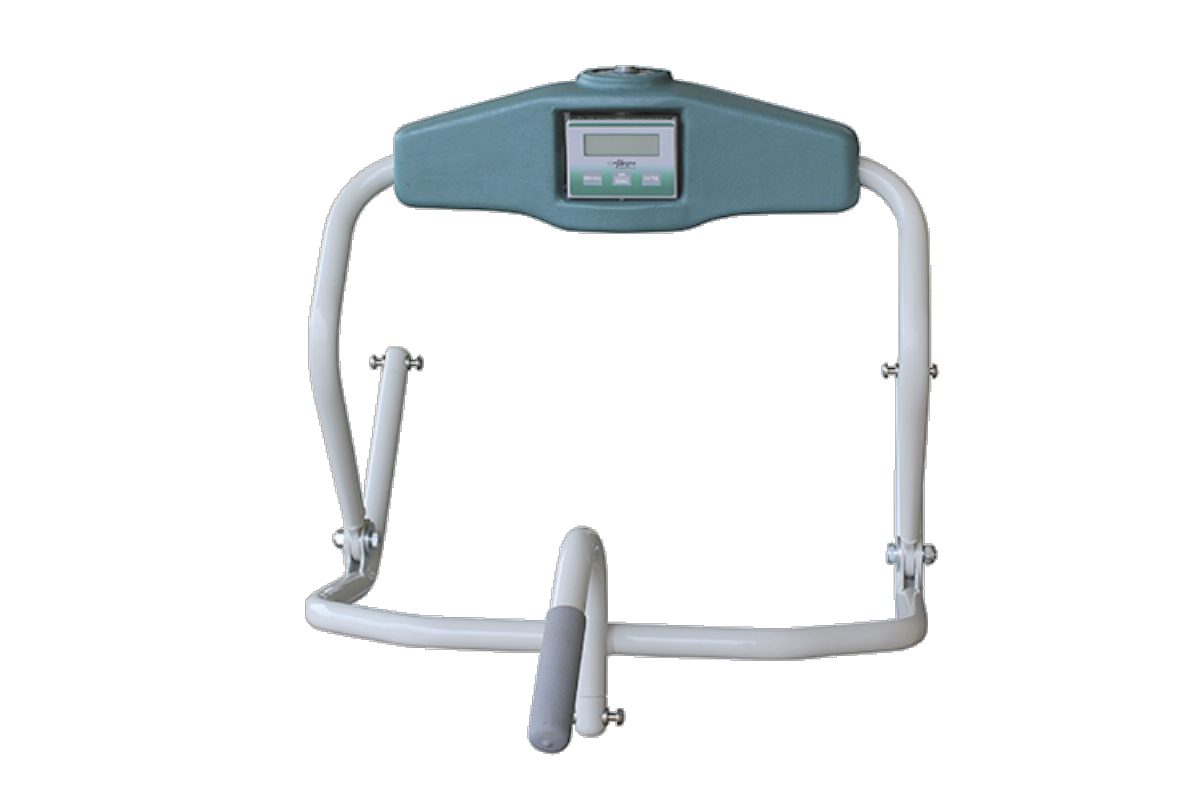

ALTO Patient Lifter with Powered Pivot Frame and Weighscale
ALTO Patient Lifter with Powered Pivot Frame and Weighscale
The model of choice for aged care facilities and hospitals.
Category:
Patient Handling
Overview

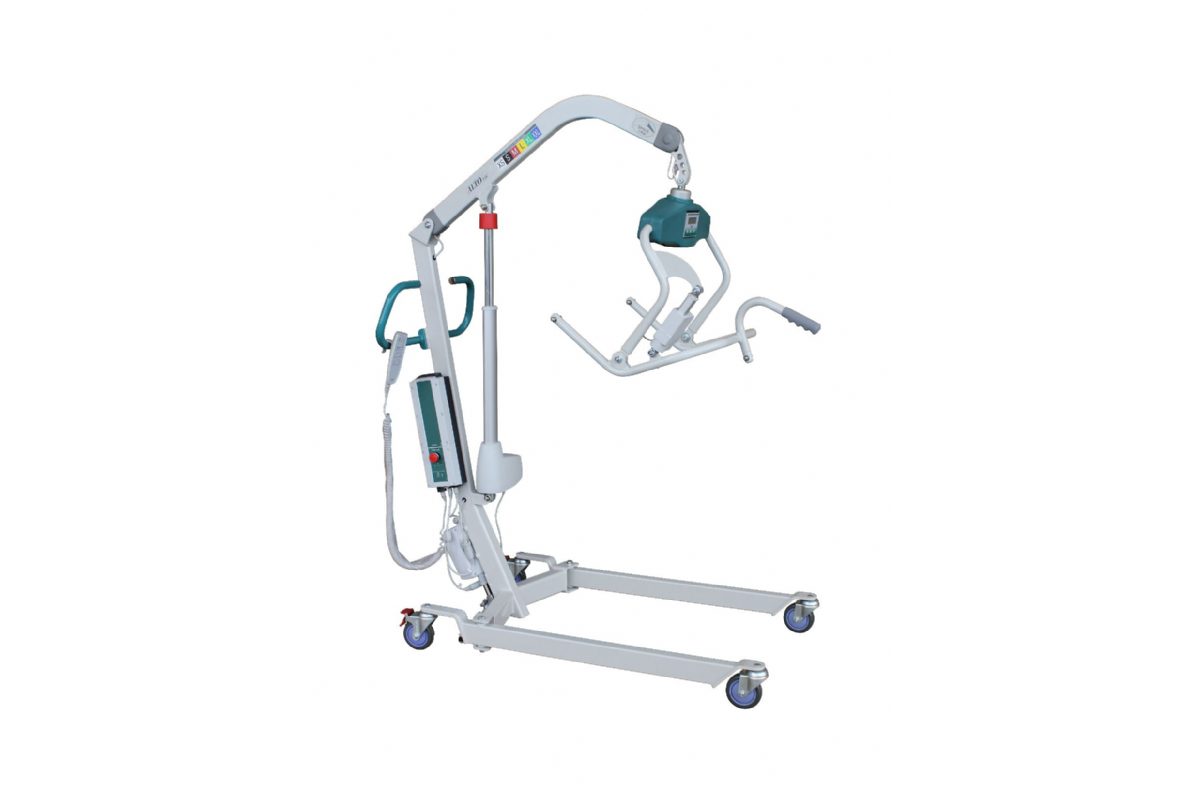

A medium sized heavy duty mobile patient lifting hoist with a safe working load of 200kg and a compact ergonomic design.
Whilst being compact, provides superior patient lift space through the use of Space Linktm technology. The Alto 200 is the lifter of choice for institutional use or home care where a high capacity lift is required.
Specifications
Safe Working Load: 200kg
Base Length: 1150mm
External Base Width Closed: 700mm
External Base Width Open: 1130mm
Internal Base Width Closed: 600mm
Internal Base Width Open: 1030mm
Base Width Adjustment: Electric
Under Bed Clearance: 130mm
Minimum Height Yoke: 300mm
Maximum Height Yoke: 1920mm
Average Lift Range*: 1620mm
Lifter Weight: 46kg
Minimum Storage Height: 1350mm
Under Base Height: 55mm
Maximum Hoist Reach: 1060mm
Minimum Hoist Reach: 610mm
Hoist Reach at Maximum Height: 515mm
Mass of Heaviest Part: 24kg (Mast assembly)

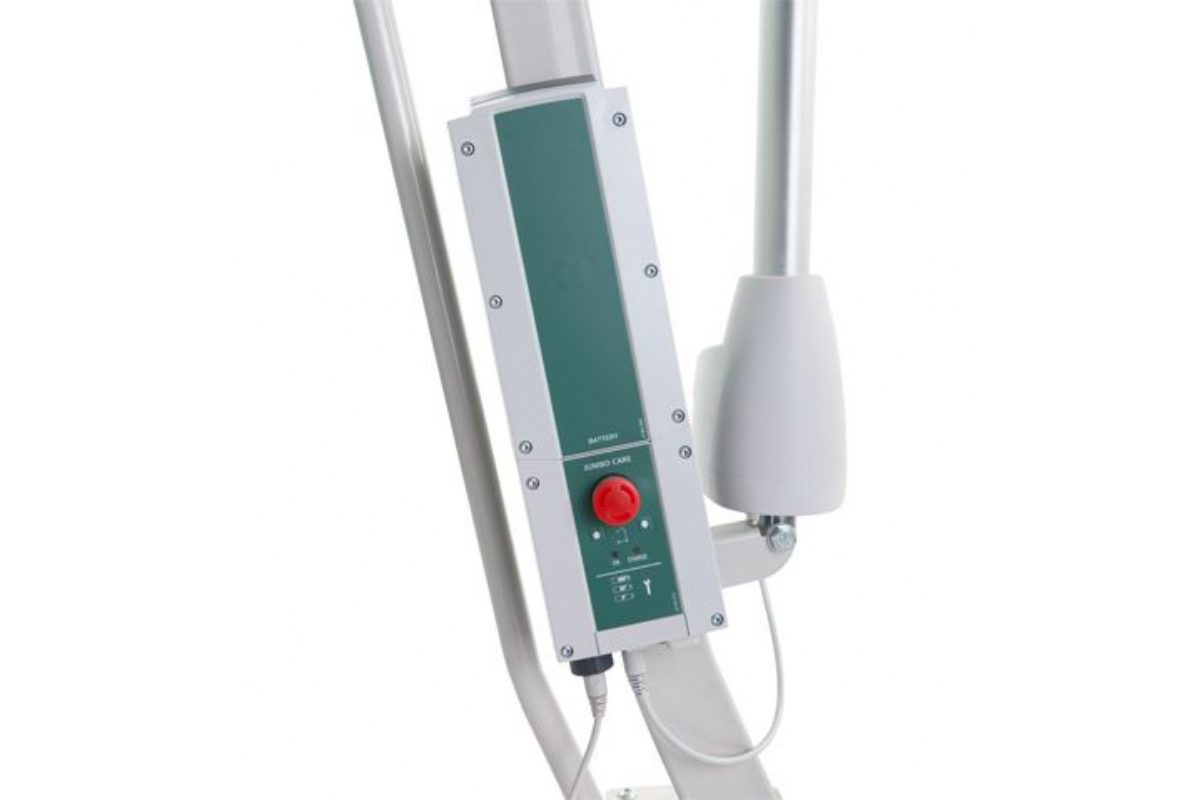

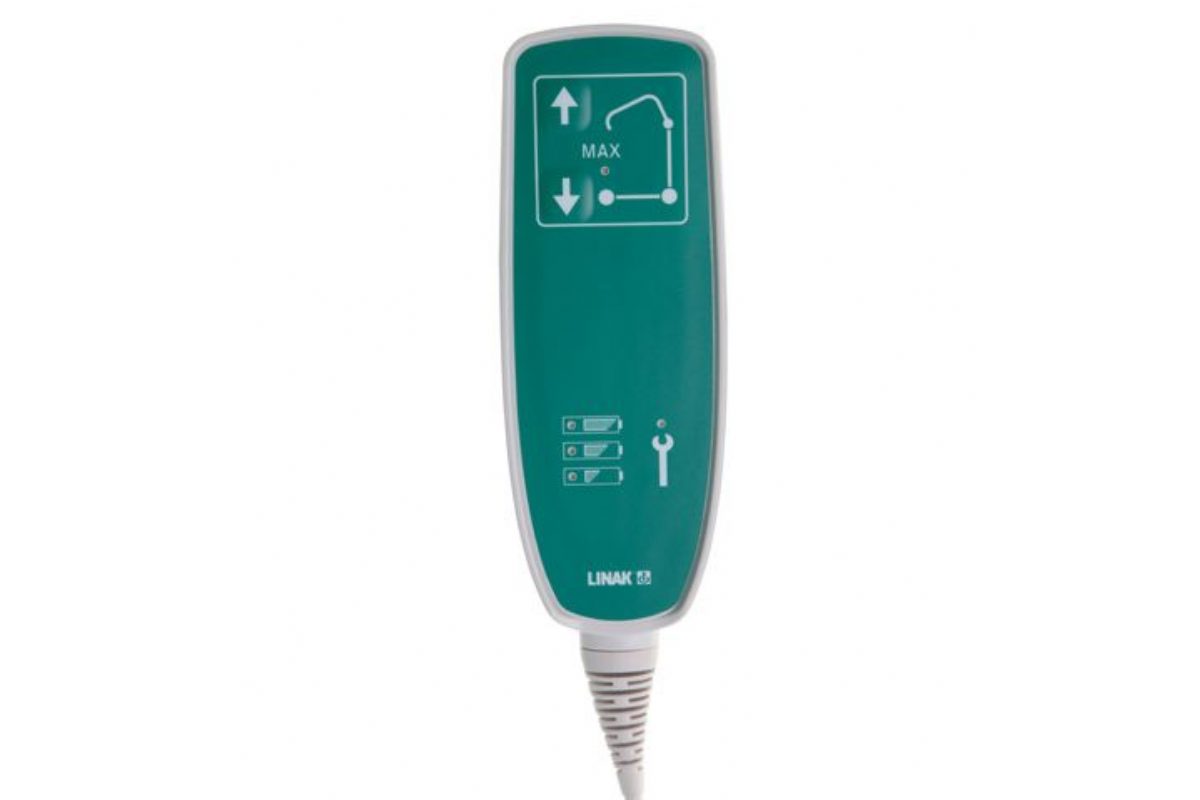

Linak actuators & electrics
MADE IN AUSTRALIA
