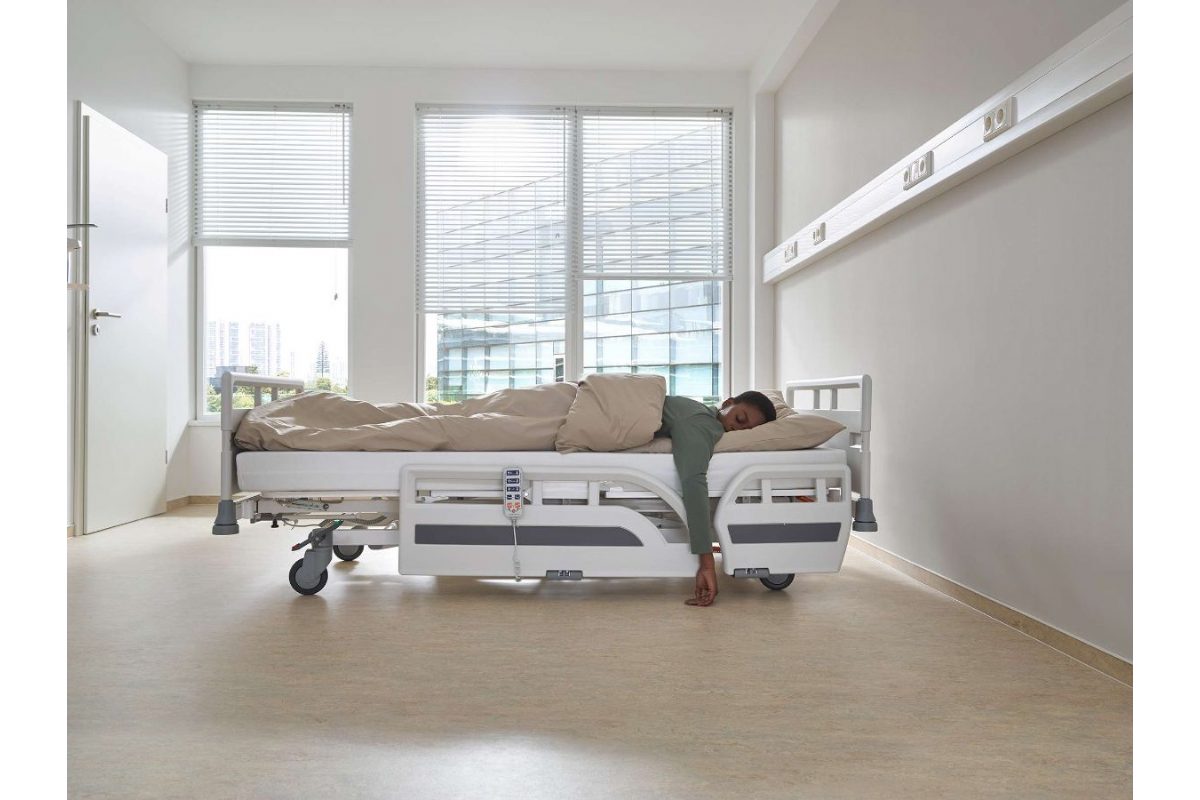

Stiegelmeyer Evario One
Overview

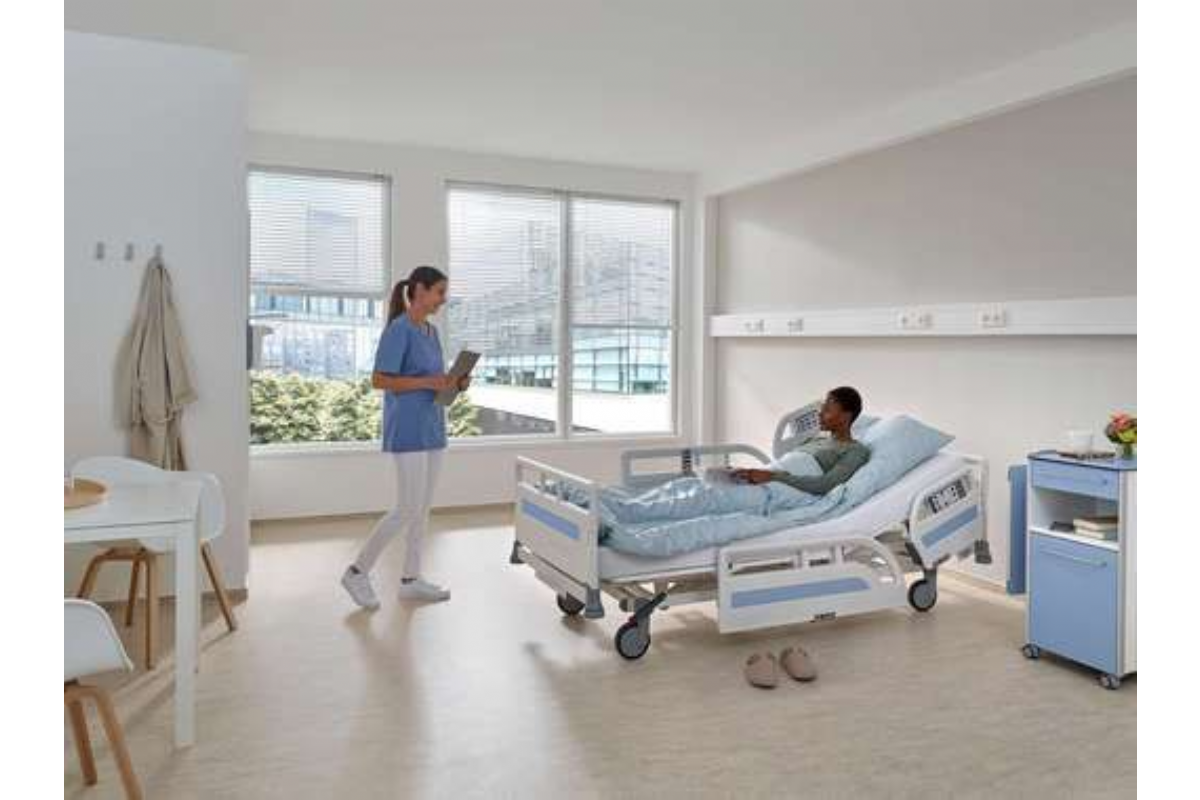

In order to relieve stress and physical strain in everyday hospital life, medical products must bring particular advantages to the job: they should be safe, easy to use and support patients and nursing staff in the best possible way. It was these essential qualities that we focused on when developing the Evario one. The fully motorised hospital bed combines many helpful functions with a modern design. The Evario one has been tested far beyond current standards so you can rely on its high quality and durability.
Advantages for you
CHOOSE YOUR PREFERRED CONTROL CONCEPT:

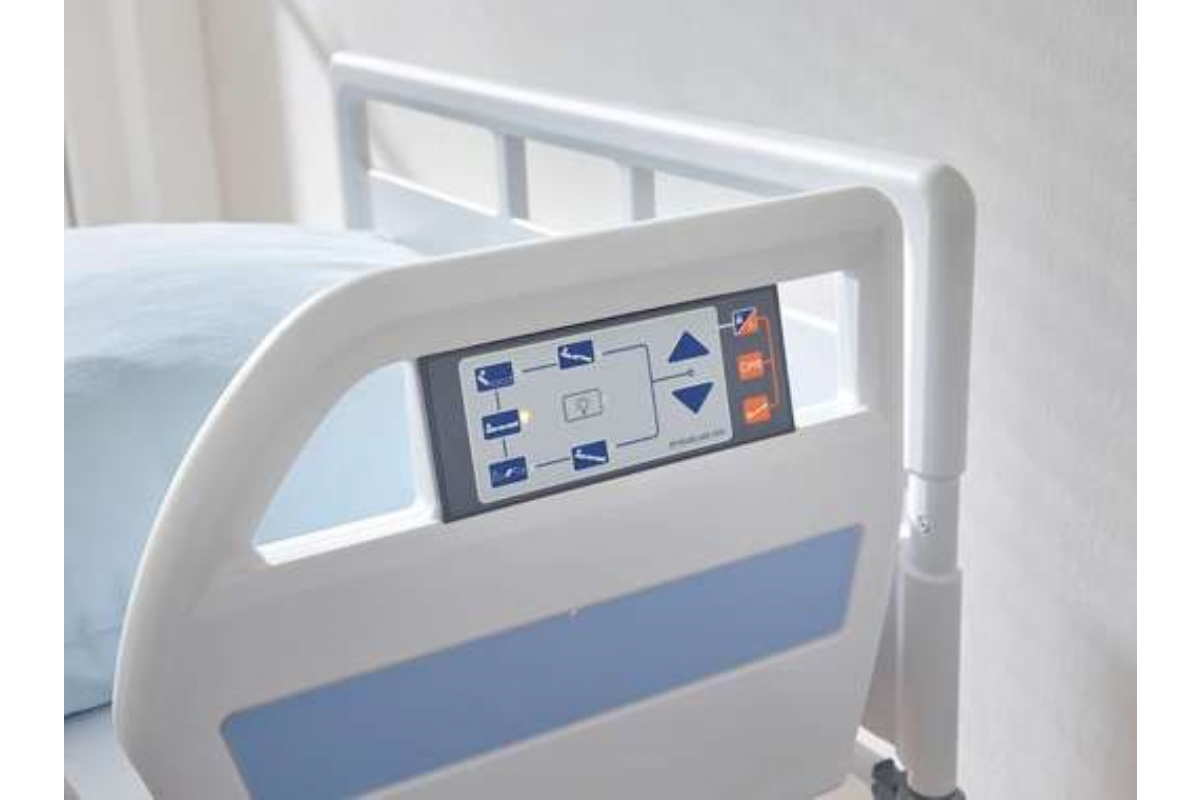

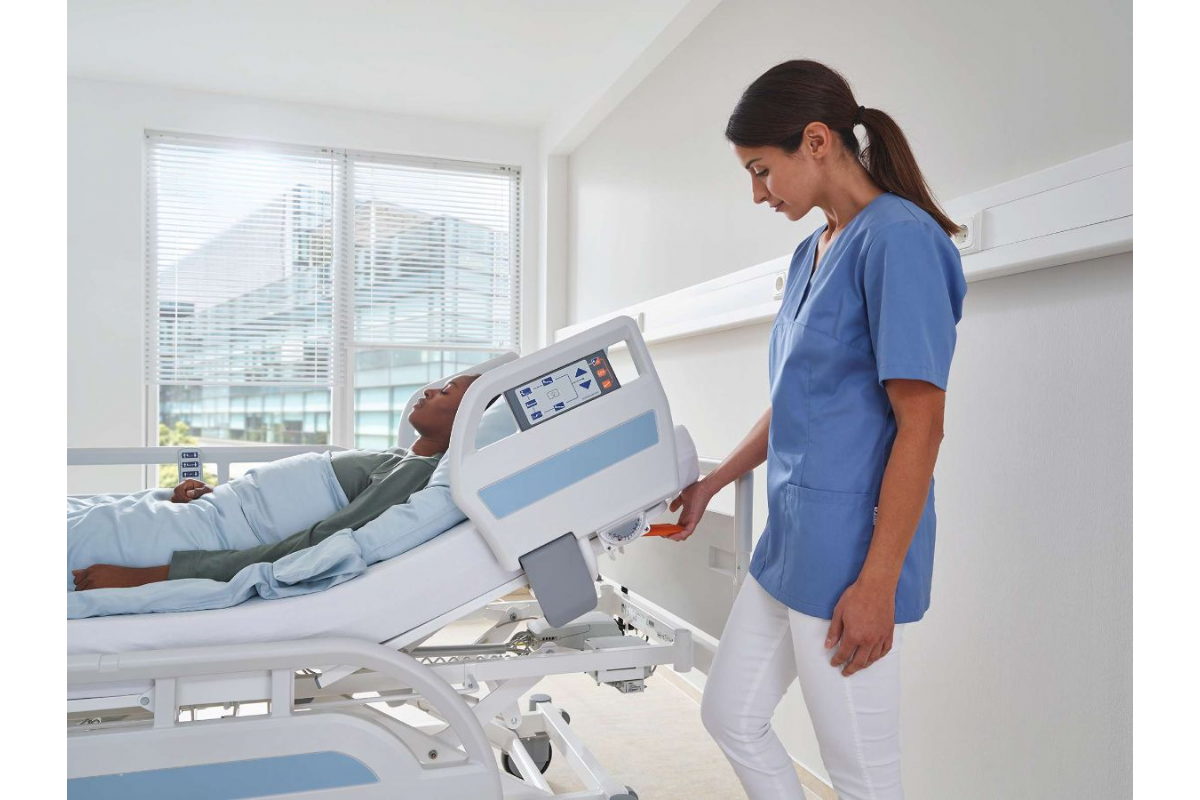

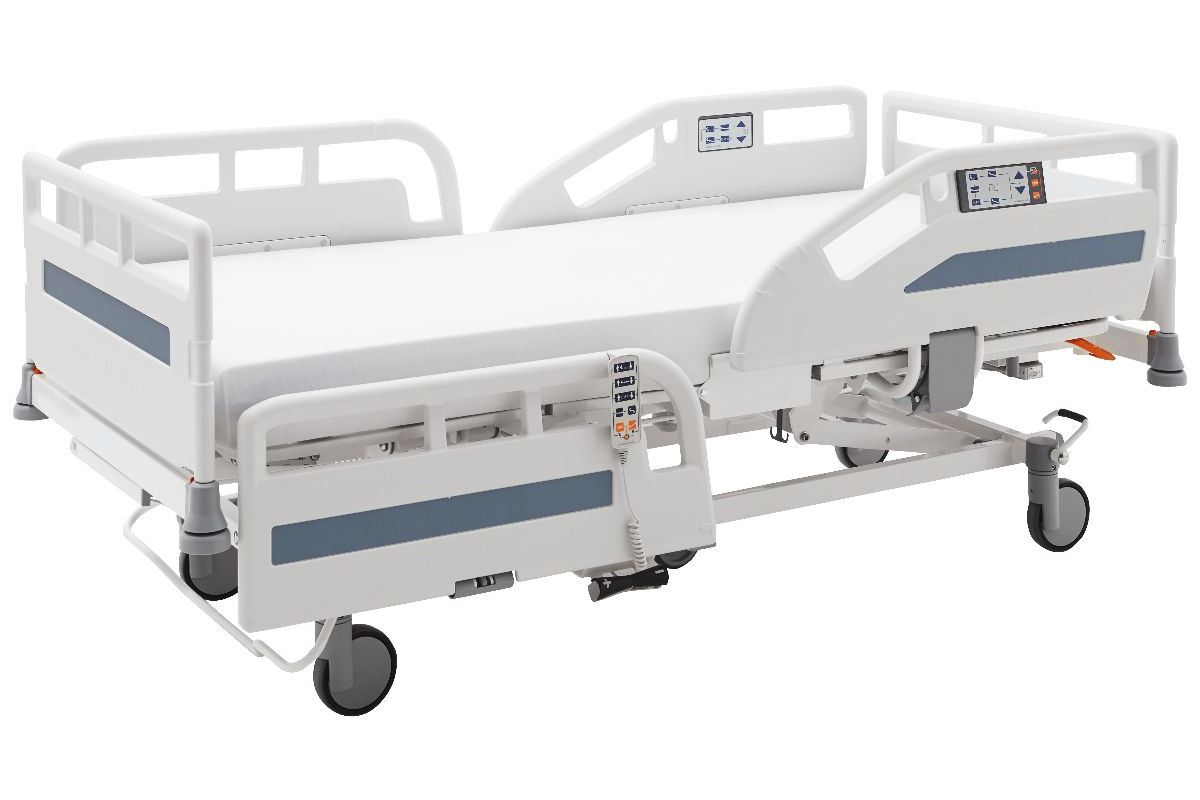

Ideal integrated resources are available for controlling the Evario one – an ergonomic handset, the “light”-version integrated control panel (in conjunction with split safety sides), the nurse control at the foot end available in different sizes (S and M) and a practical foot pedal for adjusting the height. An ideal combination is available for every type of use.
HELP IN AN EMERGENCY:

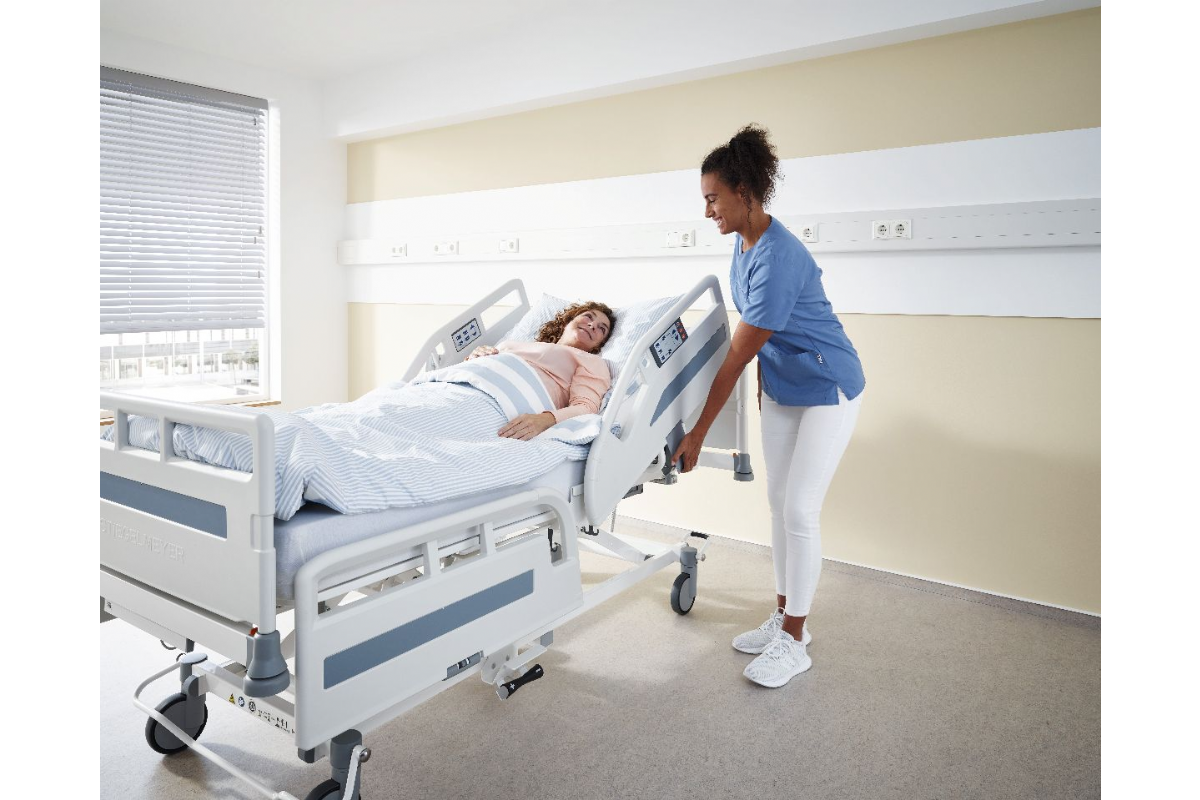

Every second counts in an emergency. All Evario one control devices feature a quick control button for setting CPR and Trendelenburg positions. Using the manual CPR lever at the head end saves even more time. The headboard and footboard can be removed within seconds to provide better access to the patient.
GOOD MANOEUVRABILITY:
Sturdy central-locking 125 or 150mm castors give Evario one its excellent handling characteristics. An optional fifth castor improves the directional stability and precise handling characteristics even further. This makes the job easier for staff and prevents expensive collision damage.
Specifications
| Evario one | |
|---|---|
| Mattress base in cm (mattress dimensions) | 87/90x200 cm |
| External dimensions of bed in cm | 99.7 x 214 |
| Bed extension in cm | 18 |
| Safe working load in kg | 250 |
| Ground clearance of chassis in cm | 15.3 - 17.3 |
| Total weight in kg | 130 |

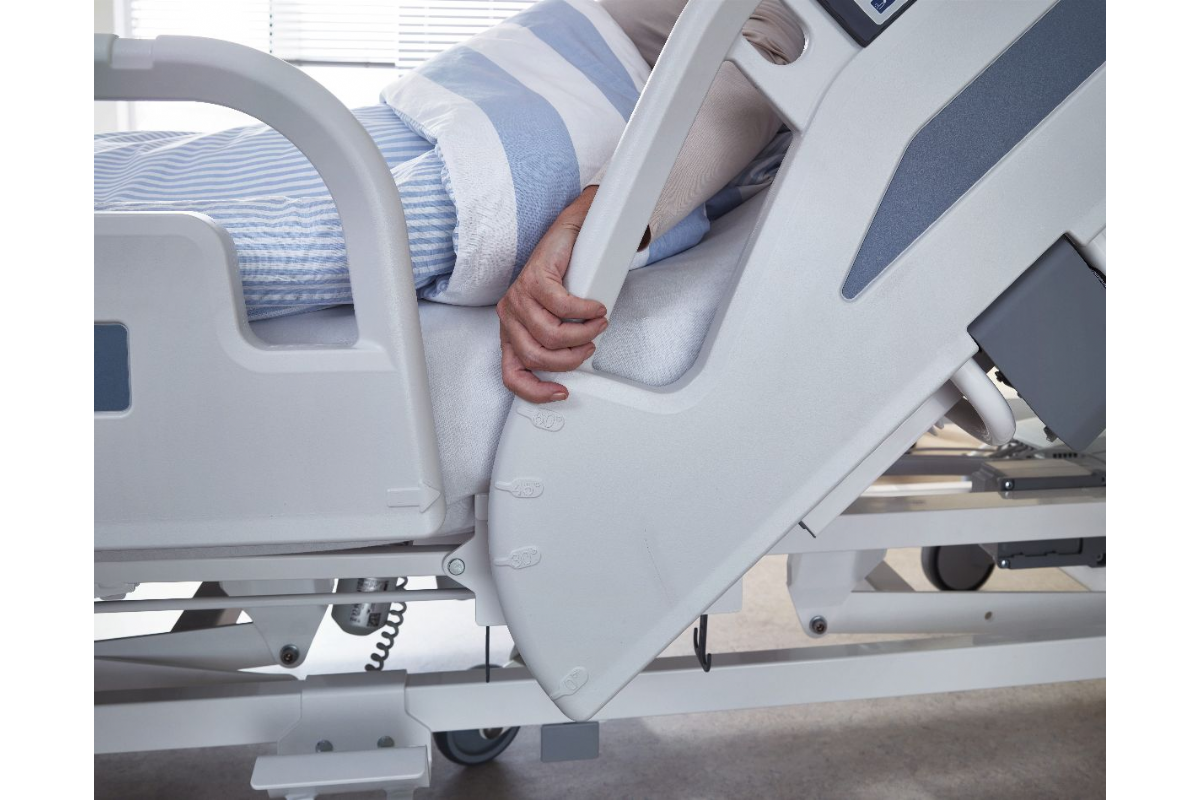

| Split plastic safety side | |
| Pivoting safety side – 3/4 safety side | |
| Protective height of pivoting 3/4 safety side | 38 cm |
| Protective height of split safety side | 39 cm |
| Maximum weight of patient in kg | 240 |
| Tilting to Trendelenburg position in ° | 15.5 |
| Tilting to reverse-Trendelenburg position in ° | 15.5 |
| Mattress base height (cover castor Ø 125 mm) | Approx. 36 – 80 cm |
| Mattress base height (integral castor Ø 150 mm) | Approx. 38 – 82 cm |
| Backrest angle in ° | 71 |
| Thigh rest angle in ° | 32 |
| Fowler position angle | 11 |
| Auto contour adjustment/Fowler position | |

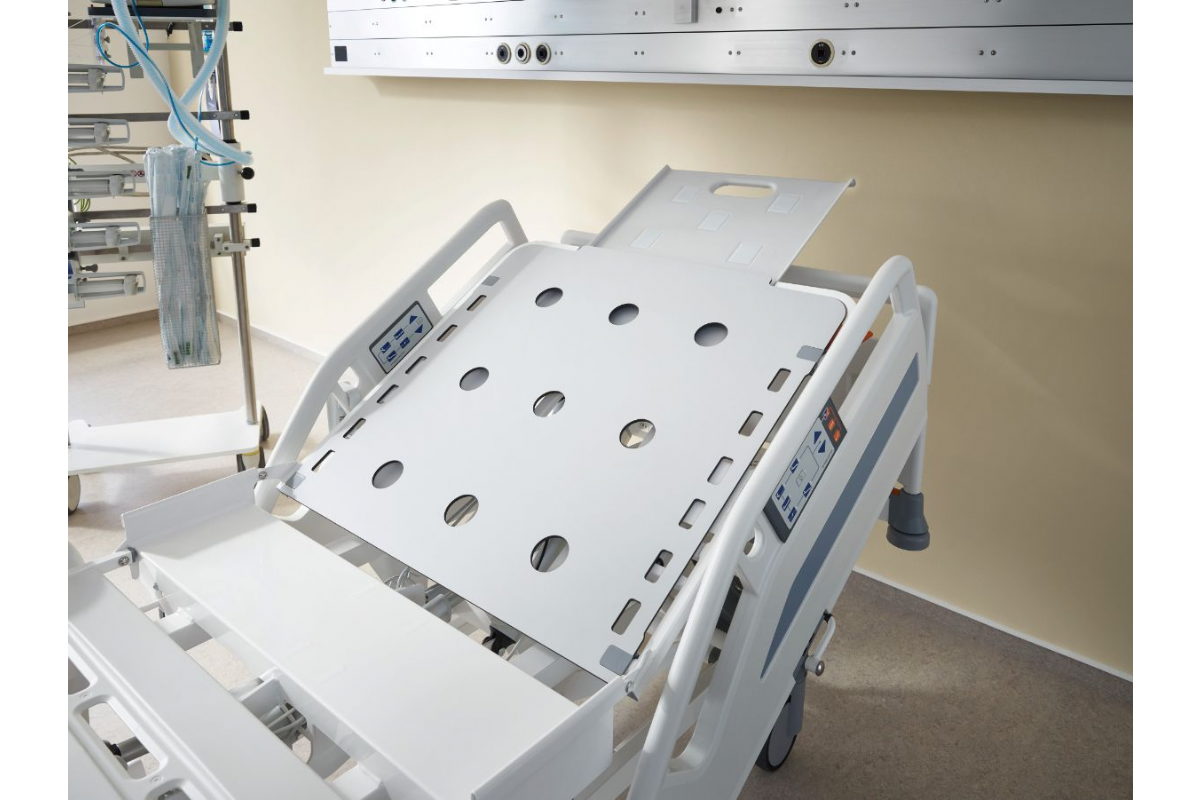

| Manual CPR release of the backrest | |
| electrically adjustable | |
