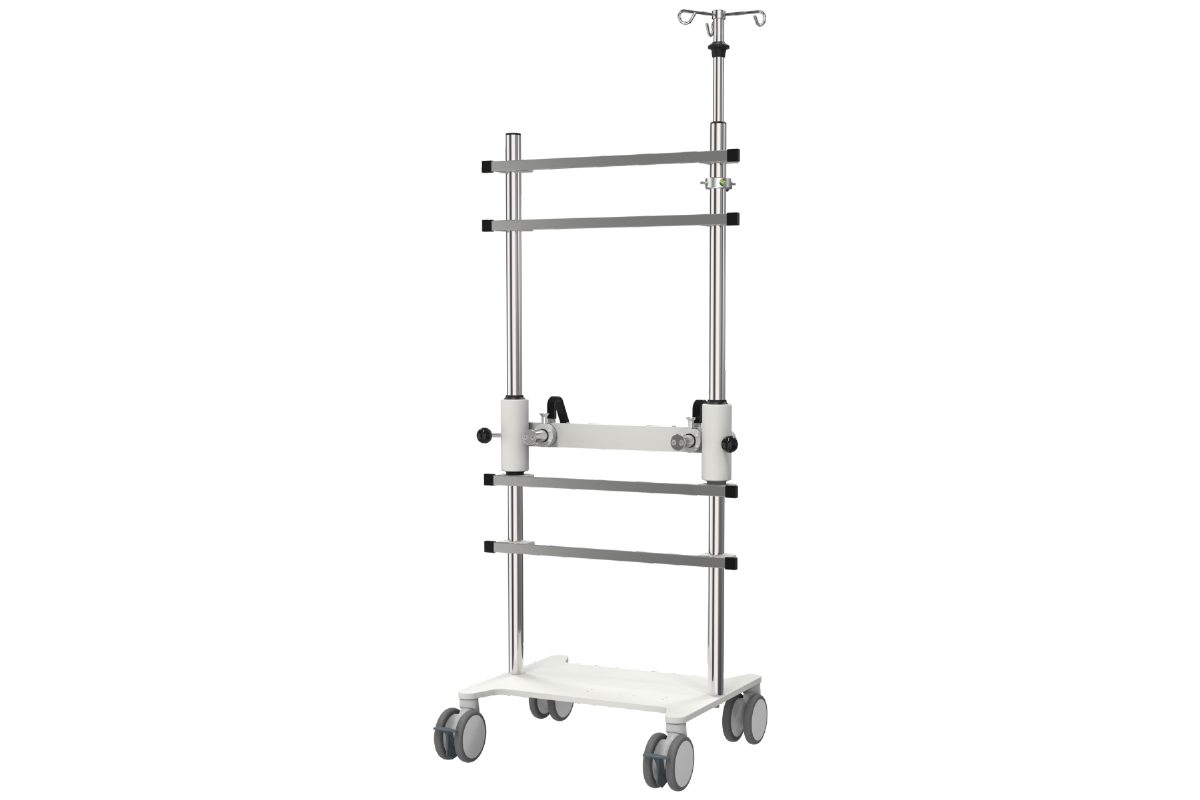

Provita Providock - Mobile Transfer Cart
Provita Providock - Mobile Transfer Cart
Effortless Mobility Meets Safety - Why the Provi-Dock Is the Go-To Solution for Equipment Stability in Hospitals
Category:
Medical Equipment and Accessories
Overview
- Safety mounting of devices being carried for an efficient patient transfer within the clinic
- Guarantees the constant, medical patient care in case of emergency or patient transfer
- The compact design enables the entrainment in common elevators (of low construction)
| Integrated, variable spacers | 0 - 60 mm [Standard] - up to 170 mm as optional accessory |
| Number of hooks | 3 |
| Arrangement of the hooks | 120° to each other |
| Load capacity (kg) | 50 kg |

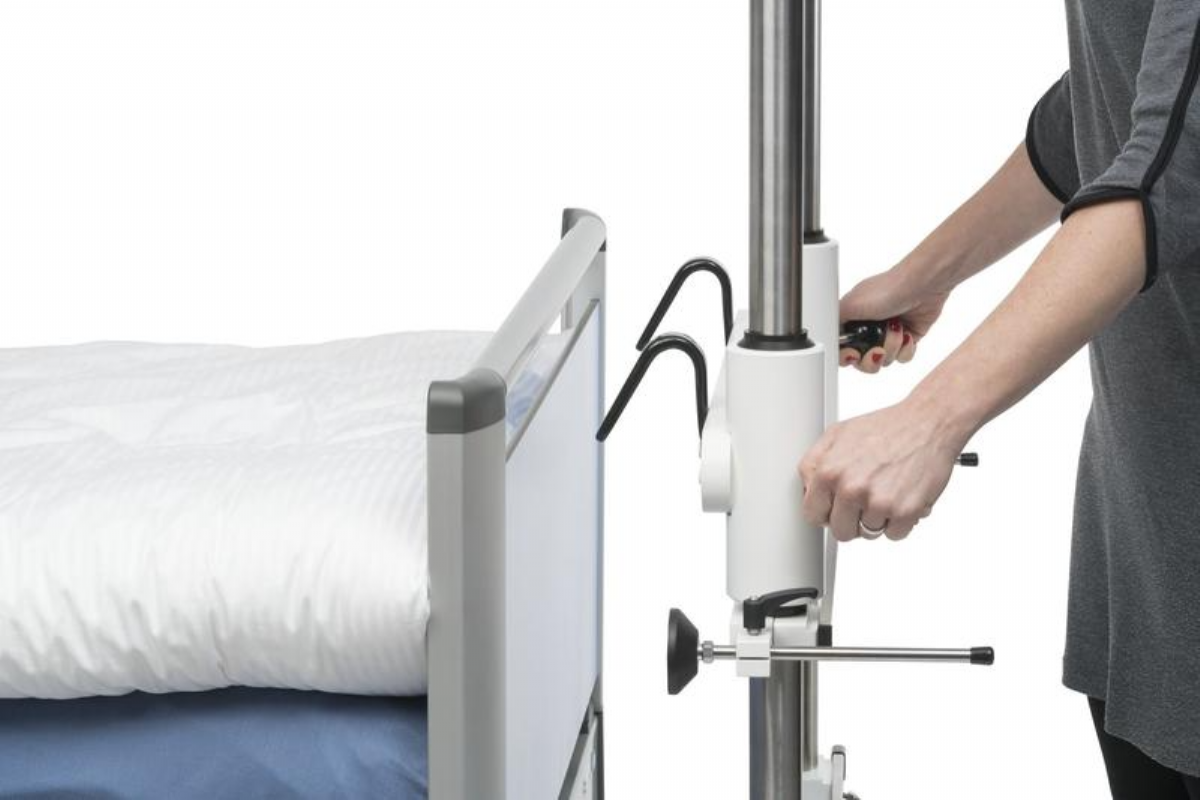

| Type of height adjustment | One-hand height adjustment |
| Maximum length/height | 1.940 mm |
| Minimum length/height | 1.770 mm |
| Extends the bed by | appr. 415 |
| Medical rails | 4 pcs. each 25 x 10 x 680 |
| Tube version | 1 tube, 1 IV-Pole |
| Round tubes length | 1.350 mm |
| Round tubes diameter (mm) | Ø 38 mm |
| Round tubes wall thickness (mm) | 2 mm |
| Distance round tube - IV-Pole | 500 mm |
| Size of base plate (mm) |
Small - 410mm x 600mm Medium - 510mm x 600mm Large - 610mm x 600mm |
Castors  |
Twin castors |
| Castor diameter | Ø 125 mm |

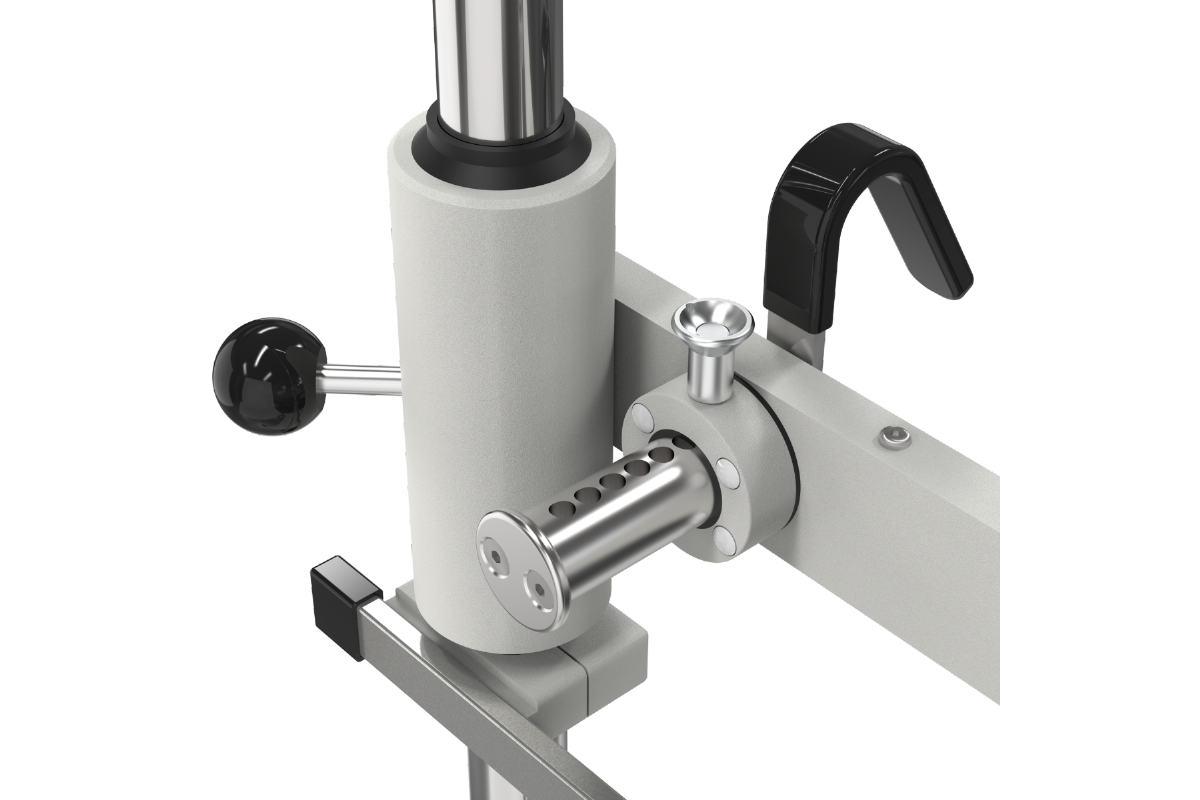

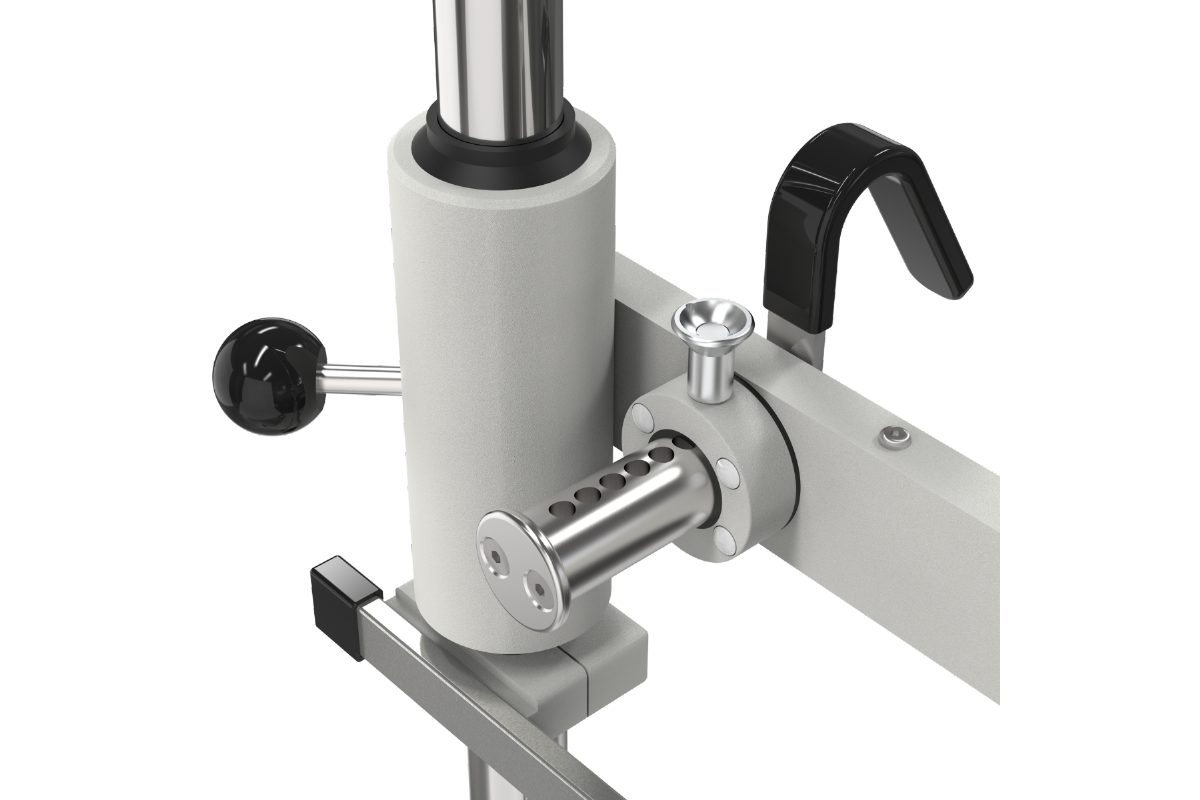

| Bed mounting | Height adjustable docking bar with 2 docking hooks |
| Docking bar | standard |
| Grounding | through grounding ring |
| Total load capacity (kg) | 50 |
| Load capacity per system (kg) | 6 |
| Load capacity per hook (kg) | 2 |
