Stiegelmeyer Evario Acute Ward bed - SWL 300kg Option
Stiegelmeyer Evario Acute Ward bed - SWL 300kg Option
Stiegelmeyer have launched an Evario 300kg SWL option
Category:
Bedroom
Overview
Hospital beds are expected to meet an extremely broad range of requirements. The tasks
they are faced with in the various hospital units are so wide-ranging that you could be
forgiven for thinking that the answer is to use a variety of special-purpose models. But
wouldn’t it be easier and more user-friendly, as well as more cost-effective, to have one
model of bed that would meet every need? This is precisely the approach followed by the
Evario from Stiegelmeyer.
The Evario goes a long way to facilitating the work of nursing staff with its effortless use.
Its planar design and its optional machine washability contribute to its excellent hygiene
characteristics. These support hospitals in the fight against multi-resistant germs.
The comfortable, cost-effective Evario is suitable not only for day-to-day patient care, but also for intensive care and for promoting a speedy recovery. Its modern control options are particularly attractive. The Protega split safety side is easy to operate and comes with excellent hygienic properties.
OPTIONS:
- Weighscale
- Out of bed alert system (falls prevention)
- 5th Castor option
- Model variants with 87 cm and 90 cm widths, extra wide and extra long
https://www.stiegelmeyer.com/en/hospital/hospital-beds/evario/#video
Features
OPTIONS:
- Weighscale
- Out of bed alert (falls prevention)
- 5th Castor option
- Stiegelmeyer Connect system will provide important information about the units bed at a glance
- Model variants with 87 cm and 90 cm widths, extra wide, extra long and with scale
- SWL 260 kg
- Maximum weight of patient approx. 250 kg
- 28 cm bed extension
- Height adjustment range of model variants of 32 - 91 cm
- Machine washable
- With sturdy stainless steel profiles
- Headboard and footboard completely removable
- Secured to prevent accidental removal
- Decors from the Stiegelmeyer Resopal collection
The advantages for you

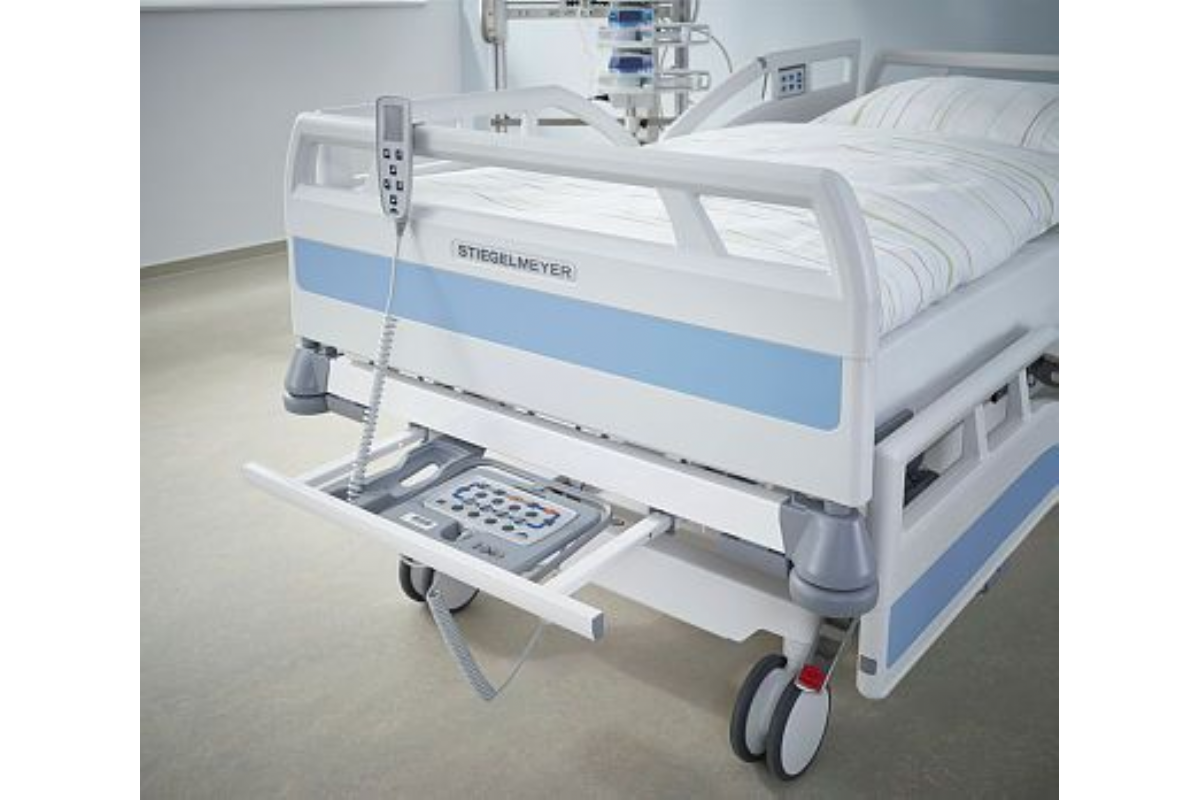

OPERATING COMFORT – The plastic Protega split safety side swings down softly. The optional integrated control panel includes control options for patients, nurses and technicians. The Protega is the only safety side of its type that is also suitable for automated reprocessing.
ELEGANCE – The Evario is an aesthetically pleasing bed whose 3 head and footboard design options to choose from lend it an individual note.
COST-EFFECTIVENESS – The bed tested far beyond industry standards is a good investment in the future.
Specifications
| Evario 87 cm wide | Evario 90 | Evario extra wide | Evario extra long | Evario with scale | ||
|---|---|---|---|---|---|---|
| Mattress base in cm (mattress dimensions) in cm | 87 x 200 | 90 x 200 | 97 x 200 | 87 x 210 | 90 x 200 | |
| External dimensions in cm | 99,7 x 219 | 103,8 x 219 | 109,7 x 219 | 99,7 x 227 | 103,8 x 219 | |
| Bed extension in cm | 28 | 28 | 28 | 19 | 28 | |
| Safe working load in kg | 260 | 260 | 260 | 260 | 260 | 260 |
| Ground clearance of chassis in cm | 17 | 17 | 17 | 17 | 17 | 17 |
| Ground clearance of chassis with Linea castor Ø 150mm | 13,5 | 13,5 | 13,5 | 13,5 | 13,5 | |
| Total weight in kg | 160 | 162 | 165 | 160 | 165 | |
| Maximum weight of patient in kg ca. | 250 | 250 | 250 | 250 | 250 | 250 |
| Protective height of Protega safety sides | 41 | 41 | 41 | 41 | 41 | 41 |
| Protective height of 3/4 safety sides | 39 | 39 | 39 | |||
| Tilting to Trendelenburg position in ° | 14 | 14 | 14 | 14 | 14 | |
| Tilting to reverse-Trendelenburg position in ° | 15 | 15 | 15 | 15 | 15 | |
| Mattress base height with Linea Ø 150mm | ca. 32-88 cm | ca. 32-88 cm | ca. 32-88 cm | ca. 32-88 cm | ca. 32-88 cm | |
| Backrest angle in ° | 70 | 70 | 70 | 70 | 70 | |
| Thigh rest angle in ° ca. | 40 | 40 | 40 | 40 | 40 | |
| Fowler position angle | 16 | 16 | 16 | 16 | 16 |
