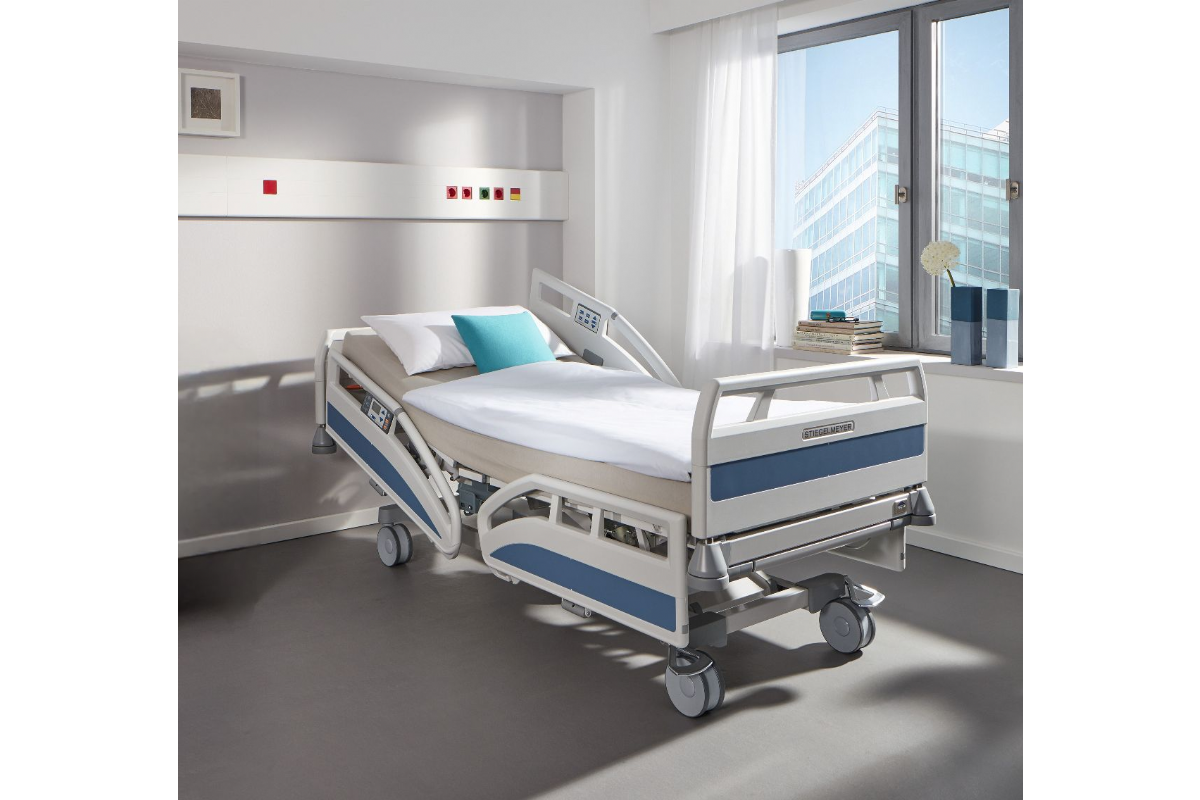

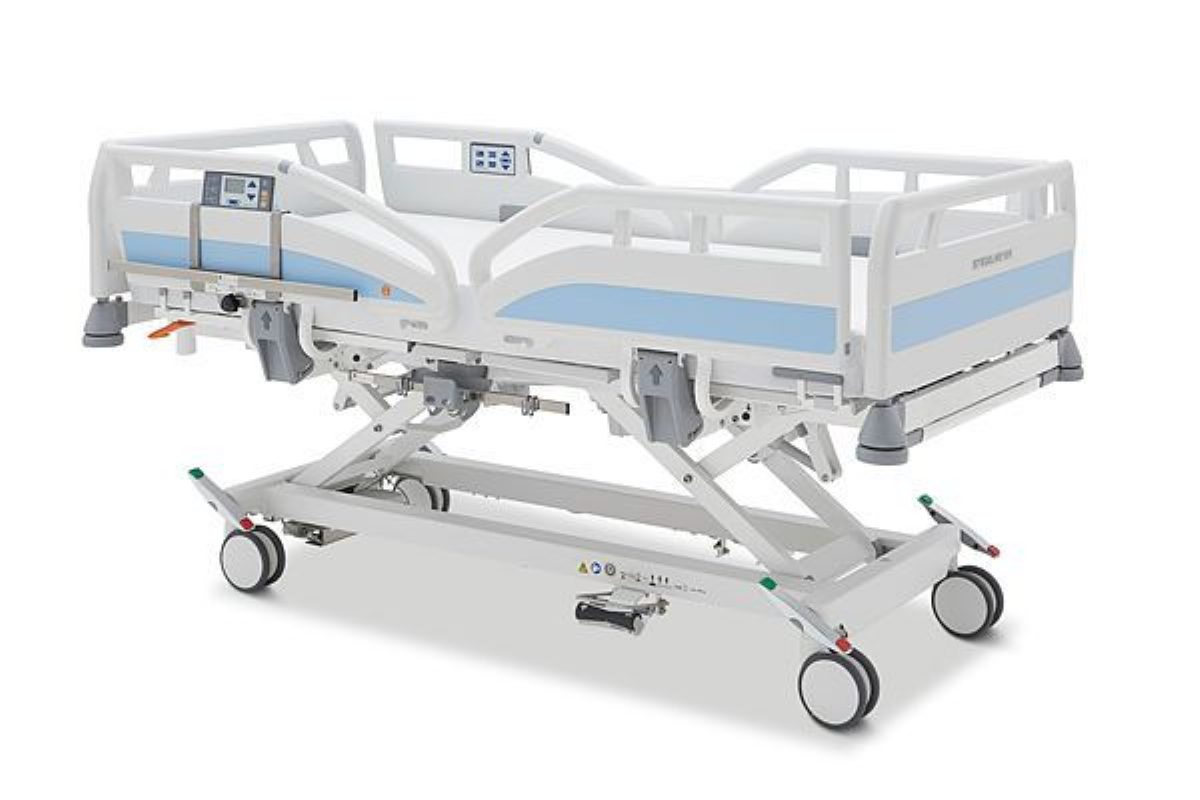

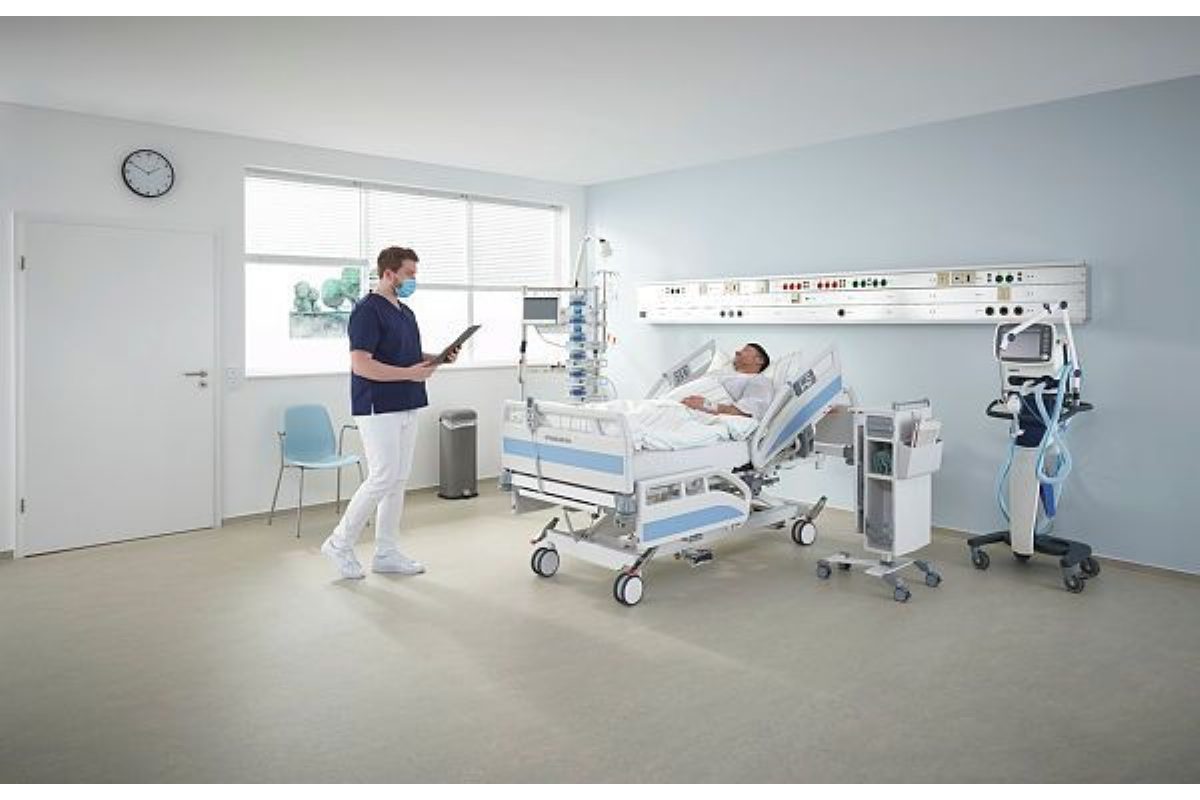

Stieglemeyer Evario Acute Ward bed with Falls Alarm & Scale.
Stieglemeyer Evario Acute Ward bed with Falls Alarm & Scale.
Smart bed with Falls Alert and Scale
Category:
Bedroom
Overview
Modern hospitals demand more than a bed—they need a solution that enhances patient safety, supports clinical workflows, and meets the highest hygiene standards. The Stiegelmeyer Evario delivers exactly that.
Why Choose Evario?
- Clinical Performance:
- Integrated Weigh Scale – Monitor patient weight accurately without transfers, reducing risk and improving efficiency.
- Out-of-Bed Alert – Advanced safety technology that notifies staff when a patient leaves the bed, helping prevent falls and improving response times.
- Intuitive controls and ergonomic design streamline nursing workflows, reducing strain and improving patient care.
- Engineering Excellence: Built for durability and cost-effectiveness, Evario combines advanced safety features with robust construction for long-term value.
- Infection Control Leadership:
- IPX6 Water Ingress Protection – Most acute ward beds only achieve IPX4, offering basic splash resistance. Evario’s IPX6 rating provides superior protection against powerful water jets, enabling thorough cleaning and disinfection without compromising electronics or safety. This ensures compliance with strict infection prevention protocols and supports hospitals in the fight against multi-resistant pathogens.
Comfort Meets Technology Patients enjoy superior comfort and faster recovery, while caregivers benefit from modern control options and the innovative Protega split safety side—easy to operate, highly secure, and hygienically optimized.
One Bed. Every Need. From routine care to critical situations, Evario delivers flexibility without compromise. It’s more than a bed—it’s a cornerstone for safer, smarter, and more efficient hospital care.
OPTIONS:
- Weighscale
- Out of bed alert system (falls prevention)
- 5th Castor option
- Model variants with 87 cm and 90 cm widths.
https://www.stiegelmeyer.com/en/hospital/hospital-beds/evario/#video
Features
- Stiegelmeyer Connect system will provide important information about the units bed at a glance
- Model variants with 87 cm and 90 cm widths with scale
- SWL 260 kg
- Maximum weight of patient approx. 250 kg
- 28 cm bed extension
- Height adjustment range of model variants of 32 - 91 cm
- Machine washable
- With sturdy stainless steel profiles
- Headboard and footboard completely removable
- Secured to prevent accidental removal
- Decors from the Stiegelmeyer Resopal collection
The advantages for you

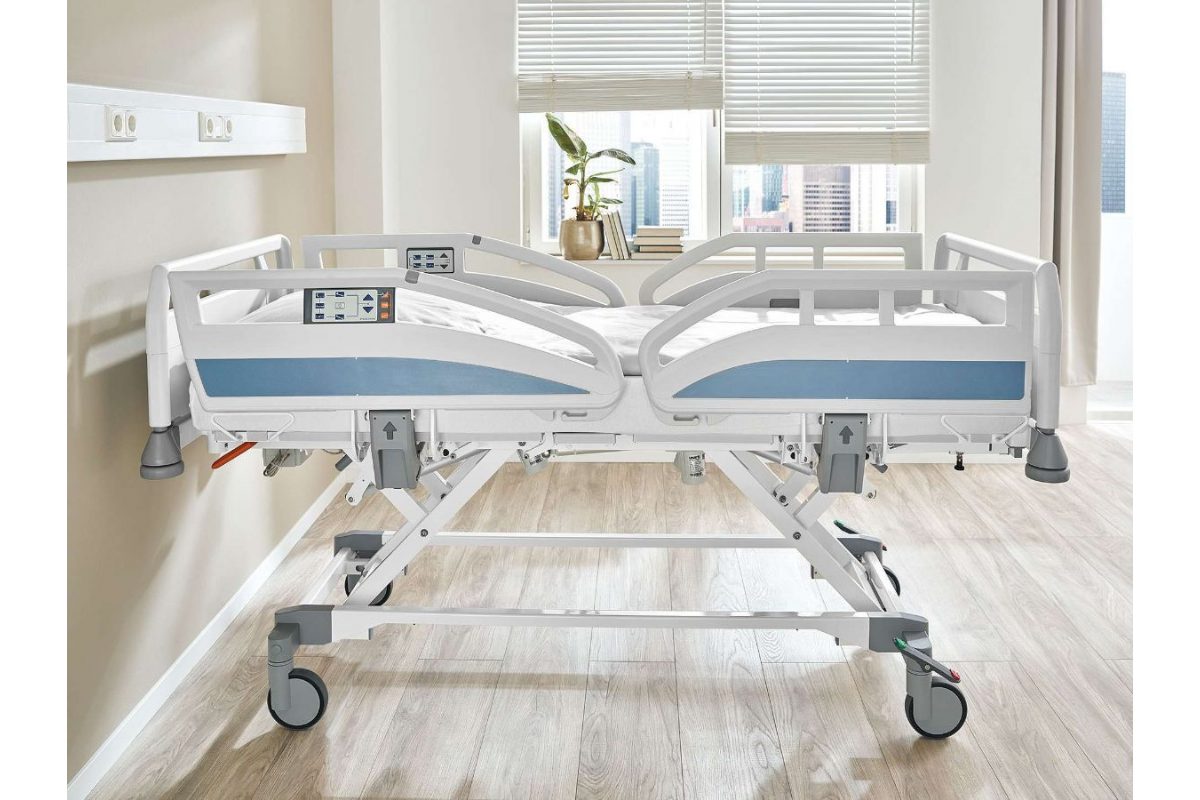

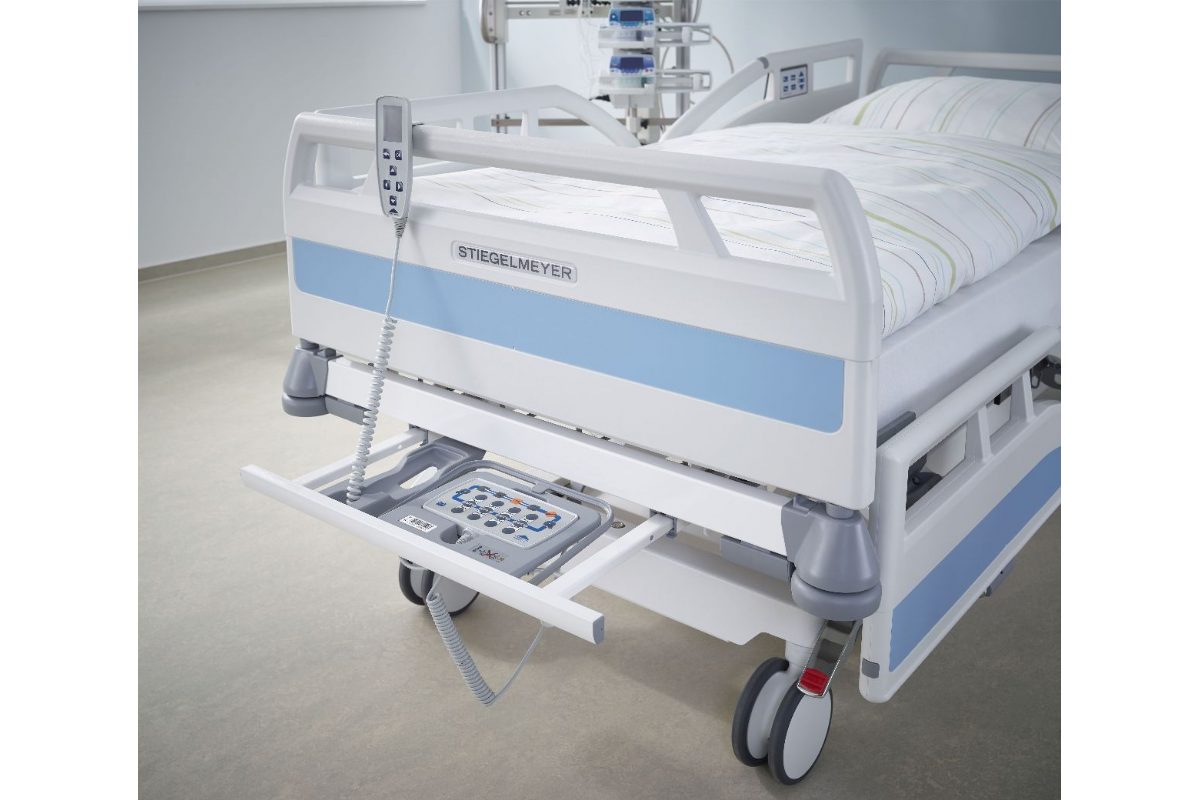

OPERATING COMFORT – The plastic Protega split safety side swings down softly. The optional integrated control panel includes control options for patients, nurses and technicians. The Protega is the only safety side of its type that is also suitable for automated reprocessing.
ELEGANCE – The Evario is an aesthetically pleasing bed whose 3 head and footboard design options to choose from lend it an individual note.
COST-EFFECTIVENESS – The bed tested far beyond industry standards is a good investment in the future.
Specifications
| Evario 87 cm wide | Evario 90 | Evario extra wide | Evario extra long | Evario with scale | |
|---|---|---|---|---|---|
| Mattress base in cm (mattress dimensions) in cm | 87 x 200 | 90 x 200 | 97 x 200 | 87 x 210 | 90 x 200 |
| External dimensions in cm | 99,7 x 219 | 103,8 x 219 | 109,7 x 219 | 99,7 x 227 | 103,8 x 219 |
| Bed extension in cm | 28 | 28 | 28 | 19 | 28 |
| Safe working load in kg | 260 | 260 | 260 | 260 | 260 |
| Ground clearance of chassis in cm | 17 | 17 | 17 | 17 | 17 |
| Ground clearance of chassis with Linea castor Ø 150mm | 13,5 | 13,5 | 13,5 | 13,5 | |
| Total weight in kg | 160 | 162 | 165 | 160 | |
| Maximum weight of patient in kg ca. | 250 | 250 | 250 | 250 | 250 |
| Protective height of Protega safety sides | 41 | 41 | 41 | 41 | 41 |
| Protective height of 3/4 safety sides | 39 | 39 | 39 | ||
| Tilting to Trendelenburg position in ° | 14 | 14 | 14 | 14 | 14 |
| Tilting to reverse-Trendelenburg position in ° | 15 | 15 | 15 | 15 | 15 |
| Mattress base height with Linea Ø 150mm | ca. 32-88 cm | ca. 32-88 cm | ca. 32-88 cm | ca. 32-88 cm | ca. 32-88 cm |
| Backrest angle in ° | 70 | 70 | 70 | 70 | 70 |
| Thigh rest angle in ° ca. | 40 | 40 | 40 | 40 | 40 |
| Fowler position angle | 16 | 16 | 16 | 16 | 16 |
